BBW12120
| IP Rating | IP68 |
| Product Dimensions | 170.0mm x 139.0mm x 125.0mm |
| Product Weight | 3.5 kg |
| Units per Case | 10 |
| Commercial Code | 8504409090 |
| Package Dimensions | 8.0in x 6.5in x 5.5in |

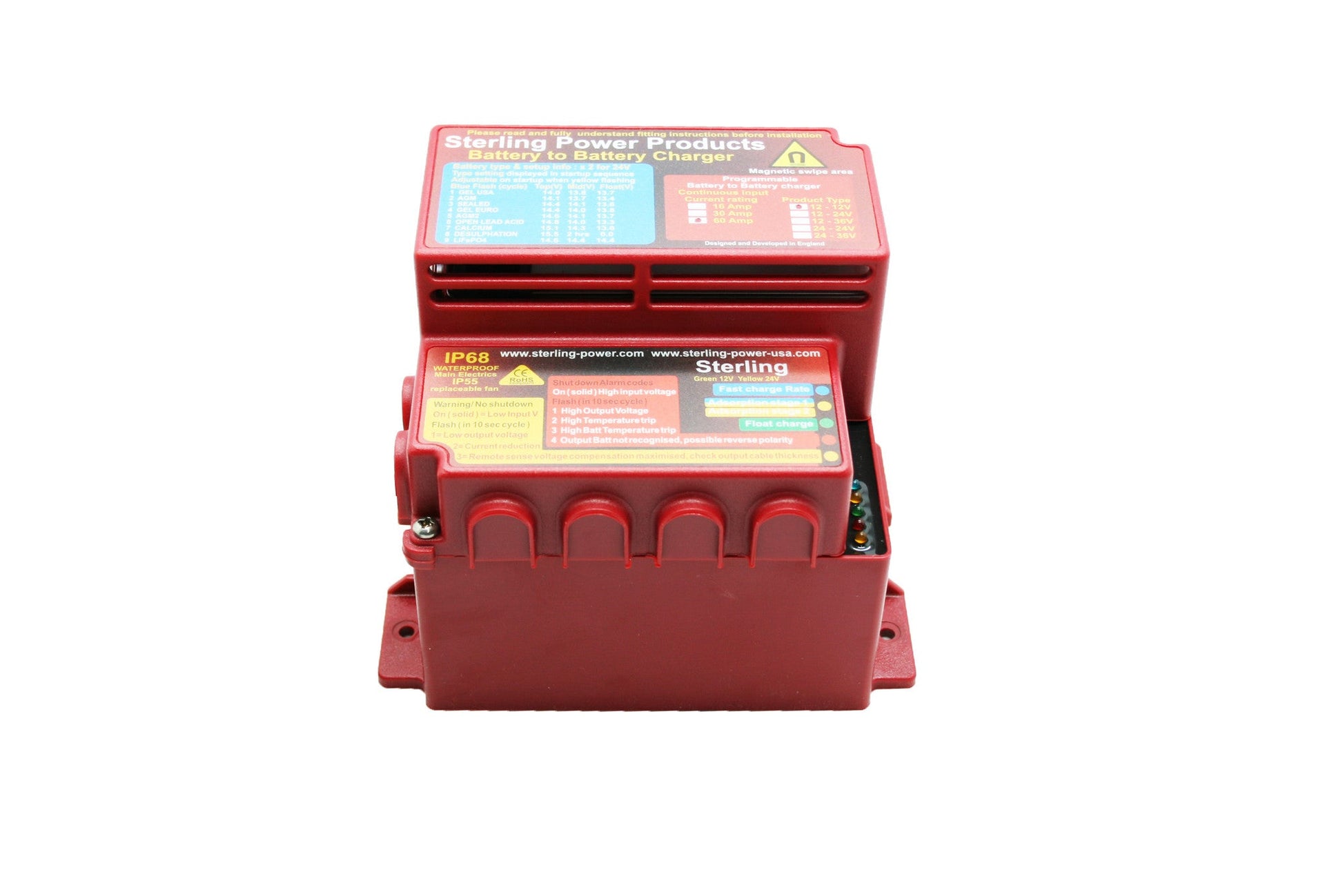

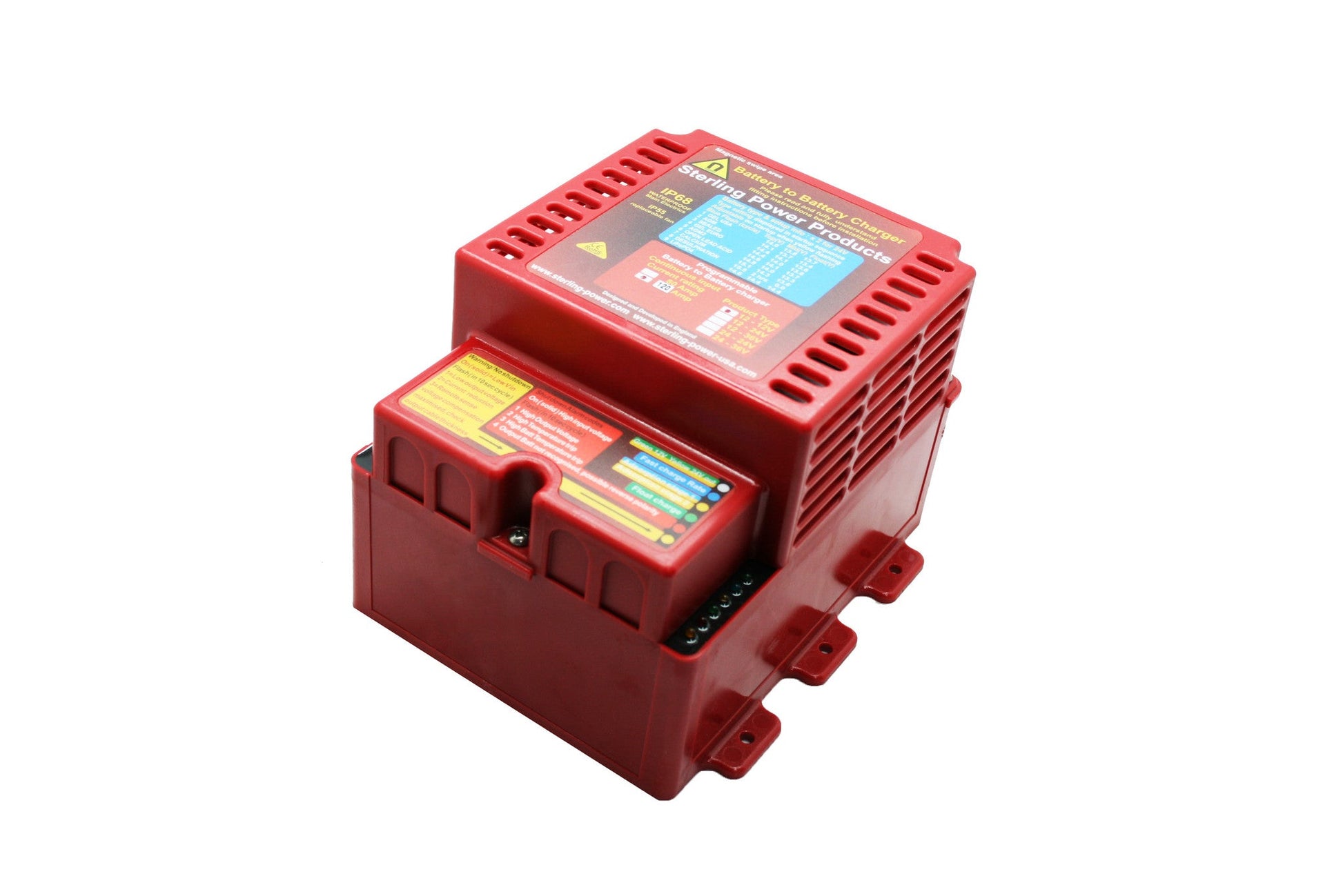

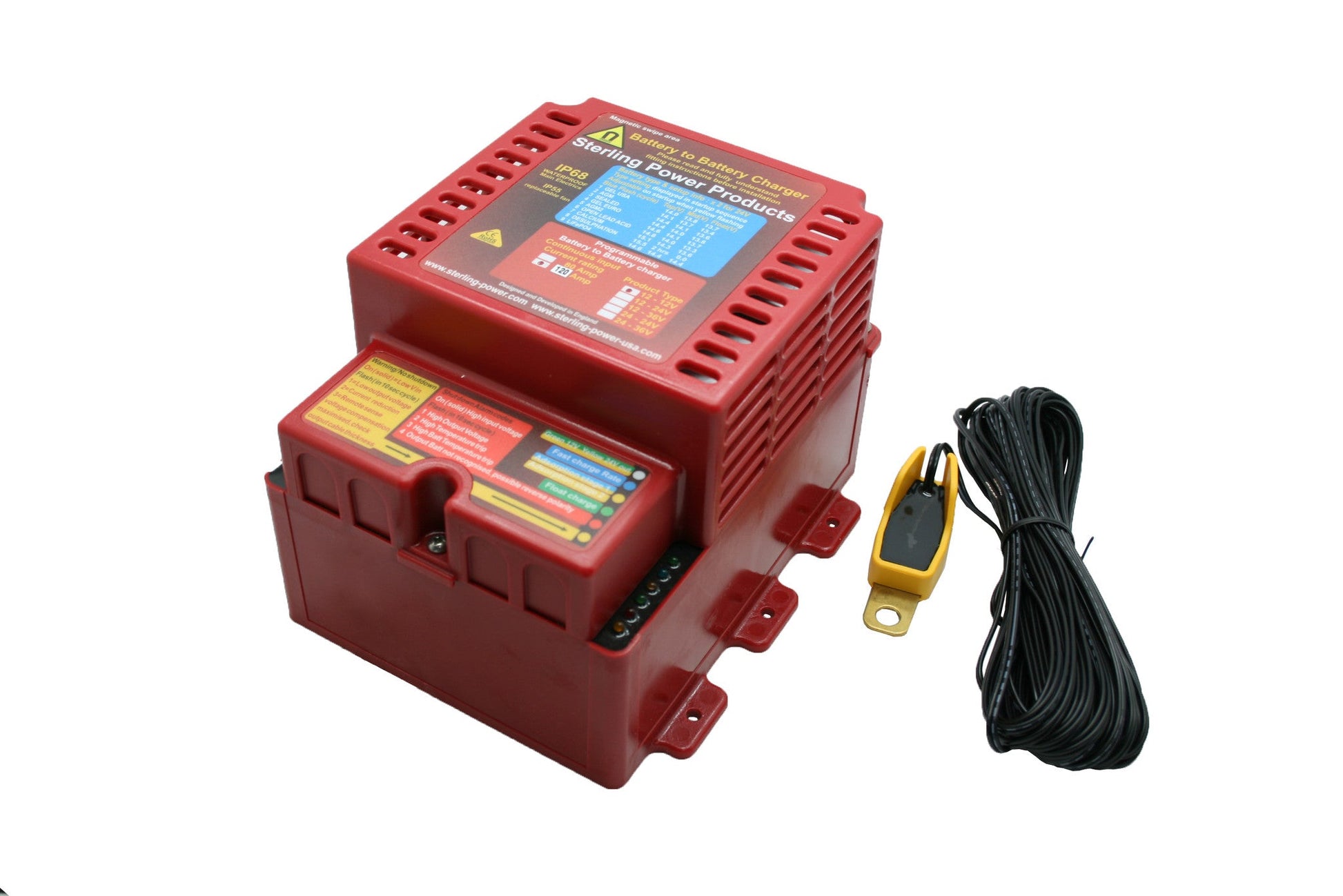

Pro Batt Waterproof [120A, older model]
Family Description
Ask a question about BBW12120
Product details
BBW12120
|
|
Instruction Manual PDF
Product InformationCurrent Limiting voltage sensitive relays (adjustable)
| DC Voltage | Amps | Size L x W x D mm | Weight Kg | Part Number |
| 12 & 24 auto | 70 | 140 x 120 x 40 | 0.5 | CVSR70 |
| 12 & 24 auto | 140 | 140 x 180 x 40 | 0.7 | CVSR140 |
| 12 & 24 auto | 210 | 140 x 210 x 40 | 0.5 | CVSR210 |
| 12 & 24 auto | 280 | 140 x 240 x 40 | 0.5 | CVSR280 |
Current limiting Voltage Sensitive Relays: This range have all the adjustment abilities as per the Pro Connect VSR.
These relays have built in current limiting, in a nutshell you can do whatever you want with them, if you overload them they simply switch off safely. The trick with a relay is not to open circuit when it is overloaded, but to remove the load, then open circuit the relay within its rating. With a current limiting VSR in an overload situation such as the example in the section above (Voltage Sensitive Relays) the 200A will surge through the relay for a split second (within the relay's capability), then the built in current limiting device will see this overload and reduce the current from the dangerous 200A+ to a very safe 6A, the relay will then safely open circuit with a 6A load and not a 200A load, and so protect the relay and your installation. Once the high load demand has been removed then the relay is safe to re-engage and continue doing its job.
Features
| 0.01 Volt drop | Ignition feed (not always required) |
| Waterproof to IP65 | SAEJ1171 ignition protected |
| High overload surge rated | Back EMF spark arrester |
| Remote LED connection | No ignition feed voltage drop |
| Suppressing diodes across relay to prolong life | Single & twin starter motor disengage connections |
| Time delay to prevent engine starter damage | 12V & 24V automatic selection |
| Extremely low quiescent current approx 1mA | Custom voltage adjustment parmeters available |
| Active progressive disconnect algorithm | Automatic voltage activation |
| Automatic voltage de-activation | Protects primary battery from discharge |
| Emergancy auxillary forced activation | High battery voltage trip protection |
| 5 LED information display | 5 alarm functions and safety trips plus information |
| Adjustable relay trigger side operation | Short circuit protection (prior to engagement) |
| Current limiting protection |
